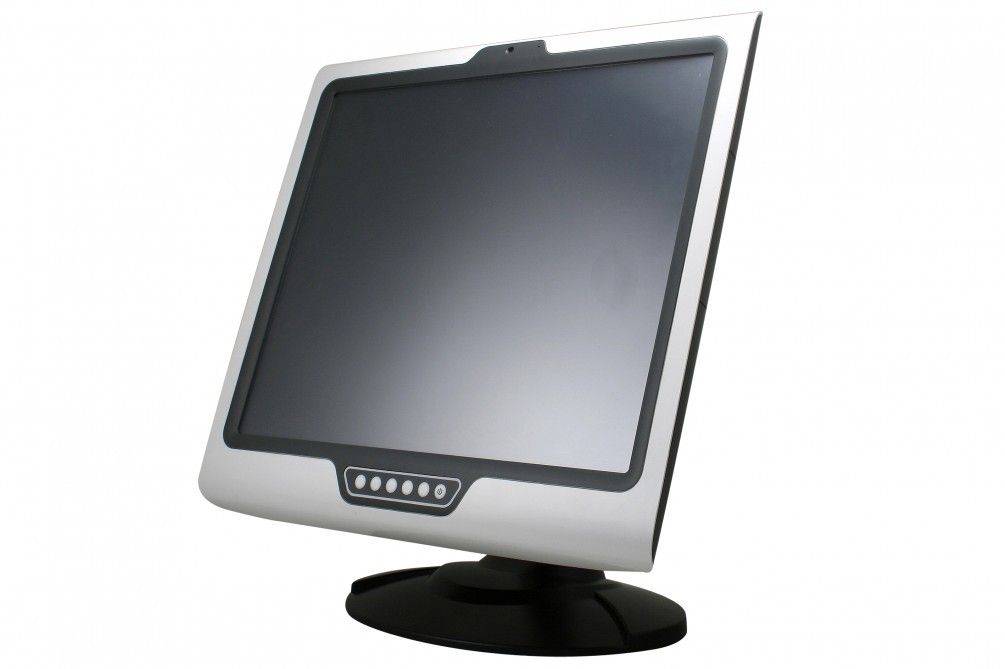

Rugged Panel PC
17' PAN-A4(D2550)
Fanless 17” SXGA TFT Multifunctional Plastic Panel PC
Features:
• 17”5-wire Resistive SXGA TFT
• Intel® Atom™ D2550 1.86GHz CPU
• GbE, Audio, 2 x 2W Speaker
• 1 CF, 2 USB, 2 COM & 1 Mini PCIe
• Wide Voltage +12V ~ +28V, ErP Power
• Power-On Timer
• Fanless Operation, VESA Compliance
• Programmable Function Key
• IP-65 Compliant Front Panel
| Display Screen | |
| Backlight | 25 |
| Color | 16.7M |
| Contrast Ratio | 1000 |
| LCD Size | 17”, 4:3 |
| Light transmission | 80% |
| Luminance | 380cd/m2 |
| Pixel Pitch | 0.264mm (H) x 0.264mm (V) |
| Resolution | 1280 x 1024 SXGA |
| Response Time | 5ms |
| Touch Interface | USB (Onboard Touch EETI) |
| Touch Screen | 5-wire Resistive |
| Viewing Angle | 80 (U), 80 (D), 85 (L), 85 (R) |
| Board | EBM-CDV |
| Rear Panel I/O | |
| Serial Port | 2 x RS-232 |
| HDMI | 1 x HDMI |
| Audio | 1 x Line-out (Realtek ALC892 Supports 5.1-CH Audio) |
| USB | 2 x USB 2.0 |
| Speaker | 2 x 2W Speaker |
| Mouse & K/B | 1 x PS/2 KB & MS |
| LAN | 1 x RJ-45 (IntelR 82574L Gigabit Ethernet, Optional Dual 82574L Gigabit Ethernet) |
| Environment & Mechanical | |
| Color | Front Panel White & Rear Gary (Plastic) |
| Dimension (W x D x H) | 391.5mm X 364.5mm X 59mm |

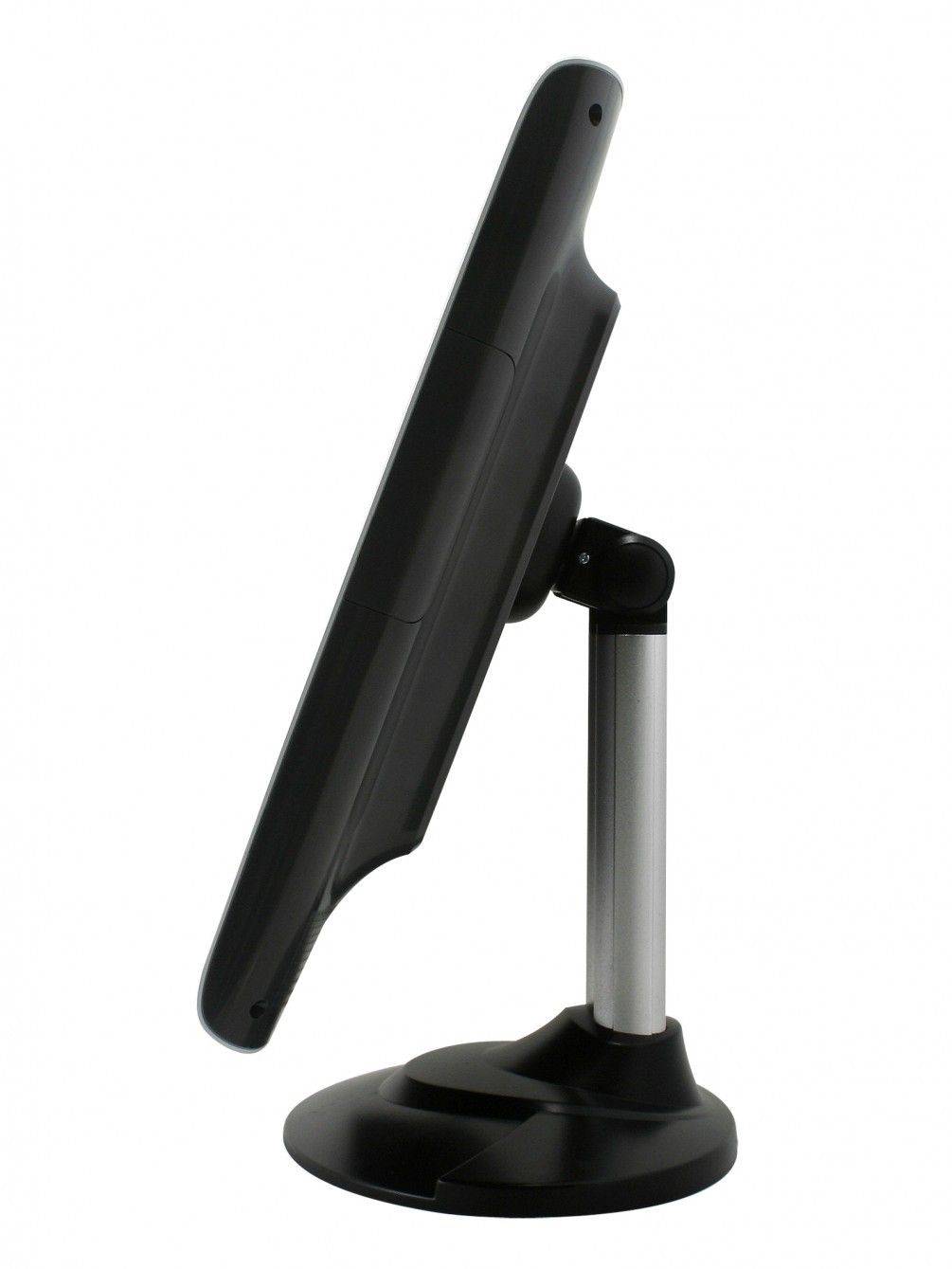

| Mounting | Wall/ Stand/ VESA 100mm X 100mm |
| Operating Temperature | 0 ~ 40°C (32 ~ 104°F) |
| Power Adapter | Input: 100 ~ 250Vdc/ 47 ~ 63Hz; Output: 60W Adapter (12V @ 5A Adapter) |
| Relative Humidity | 0% ~ 90% Relative Humidity, Non-condensing |
| Storage Temperature | -10 ~ 50°C (14 ~ 122°F) |
| System Power Requirement | +12V ~ +28V DC Power Input |
| Weight | 5.9Kgs |
| CPU | Onboard IntelR Atom? D2550 1.86GHz CPU |
| Expansion Interface | 1 x Mini PCIe Slot |
| H/W Status Monitor | Monitoring System Temperature, Voltage, with Auto Throttling Control |
| HDD Driver Bay | One 2.5” SATA HDD/ SSD |
| SSD | One CF Socket Supports Type I/II Compact Flash Card |
| System Chipset | IntelR NM10 Chipset |
| System Memory | One 204-pin SODIMM Supports Up to 4GB DDR3 1066MHz SDRAM |
| Watchdog Timer | Reset: 1 ~ 255min. and 1sec. or 1min./step |
| WiFi | Optional USB or Mini PCIe WiFi Module |
